HX320BZ
Packaging Machine Series

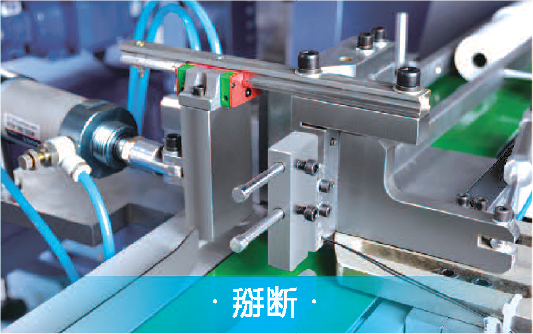

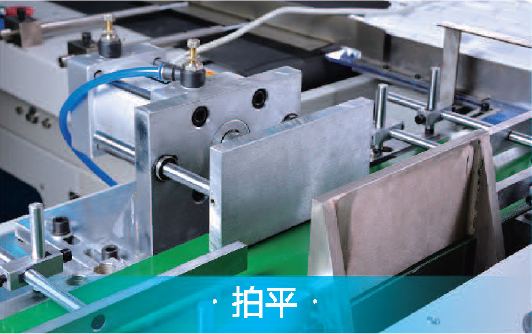

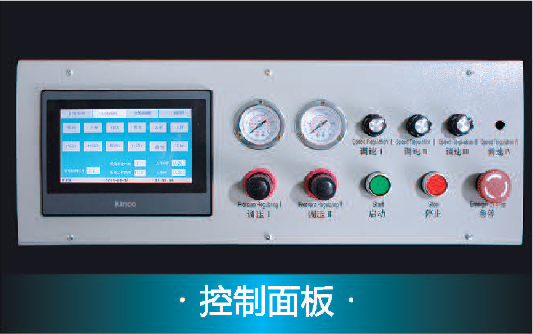

Entire machine is controlled by PLC touch screen.lt have the characteristic of automatic breaking off, automatic flat punching, automatic counting, adjustable speed, adjustable propelling width, and low noise, etc. Multi rows propelling can be achieved through PLC controlling. It is easy to operate and easy to get command of.
Specifications
| Paper roll diameter | 35-85mm |
| Paper roll length | 30-85mm |
| Transmission belt length | 100mm |
| Breaking off speed | 120times/min(max) |
| Flat punching speed | 120times/min(max) |
| Transmission belt speed | 40-500mm/s |
| Plastic package propelling speed | 20times/min(max) |
| Plastic package propelling length | 35-400mm |
| Voltage | 220v/50Hz |
| Machine Weight | 600kg |
